COMPATIBILITY & PRODUCT CODE VERIFICATION GUIDE
Important – Please Read Before Purchasing
Before purchasing this device, it is essential to verify the “Product Code” of your Bosch motor to ensure compatibility.
The Product Code is printed directly on the motor label.
In the example image, the two label formats currently used by Bosch are shown, with the Product Codes highlighted in red.
COMPATIBLE BOSCH MOTORS
BDU33 (Gen3): Performance Line, Active Line, Active Line Plus
BDU3142 / BDU3143 (Gen4): Performance Line SX, Motor mounting: 2 upper bolts
BDU3144 / BDU3145 (Gen4): Performance Line SX, Motor mounting: 2 diagonal bolts
BDU37 (Gen4): Performance Line CX, Performance Line CX-Race
BDU38 (Gen5): Performance Line SX, Performance Line CX, Performance Line CX-R
NOT COMPATIBLE WITH
❌ Classic Spoke Magnet Systems
This device is not compatible with e-bikes equipped with the traditional magnet mounted on the wheel spokes or brake disc.
❌ Bosch ABS Equipped Bikes
This device is not compatible with e-bikes using the Bosch ABS braking system.
❌ Bosch ConnectModule / GPS Systems
This device is not compatible with e-bikes equipped with the Bosch ConnectModule GPS system.
SPEEDFUN FOR BOSCH PERFORMANCE LINE SX SMART SYSTEM – RIM MAGNET BDU3144 / BDU3145

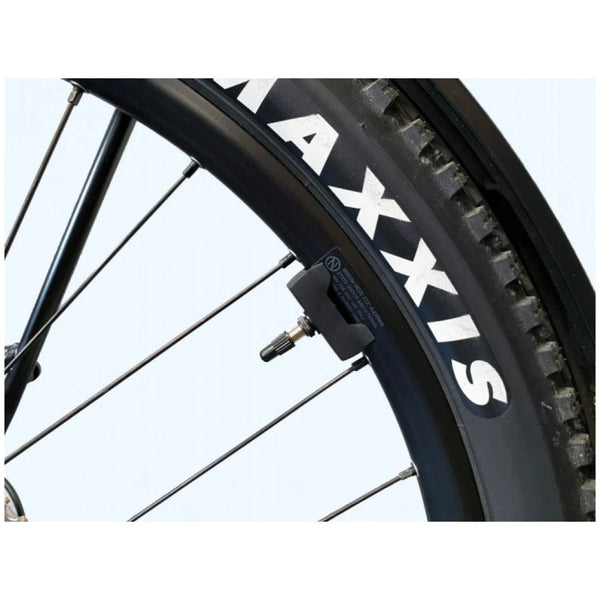

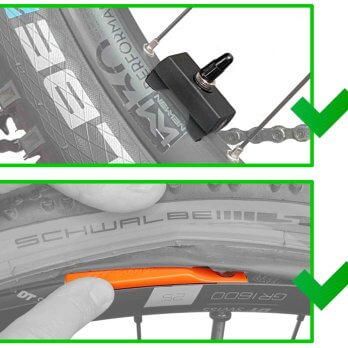

This speed release device is compatible only and exclusively with Bosch Performance Line SX BDU3144 / BDU3145 motors equipped with a magnet on the valve (Bosch Rim Magnet) regardless of the display or handlebar control.

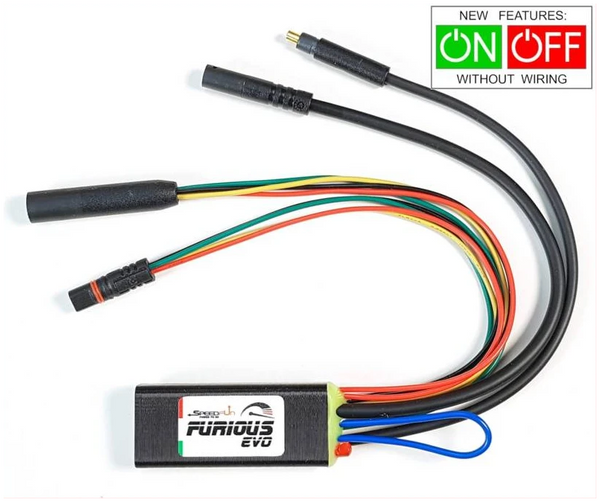

All SpeedFun Furious Evo speed release devices can be activated and deactivated at any time and connection to the light output is not necessary.
What is SpeedFun Furious Evo tuning for Bosch Smart System?
The function of the Furious Evo tuning device for Bosch Smart System is to electronically manipulate the rotation speed of the rear wheel and to communicate to the motor a speed always lower than 25 KmH in order to obtain a real speed with a very high active motor. The maximum speed limit will therefore be dictated by the power of the engine added to the power expressed by one’s legs.
This speed release device is compatible only and exclusively with Bosch Performance Line SX BDU3144 / BDU3145 motors equipped with a magnet on the valve (Bosch Rim Magnet) with LED Remote/System Controller command (also compatible with Led Remote + Kiox 300/500, Intuvia 100 or System Controller + Mini Remote) or Purion 200.
When the device is active, the display will show the exact speed up to the threshold of about 20 KmH, beyond which a manipulated speed will always be shown below 25 KmH.

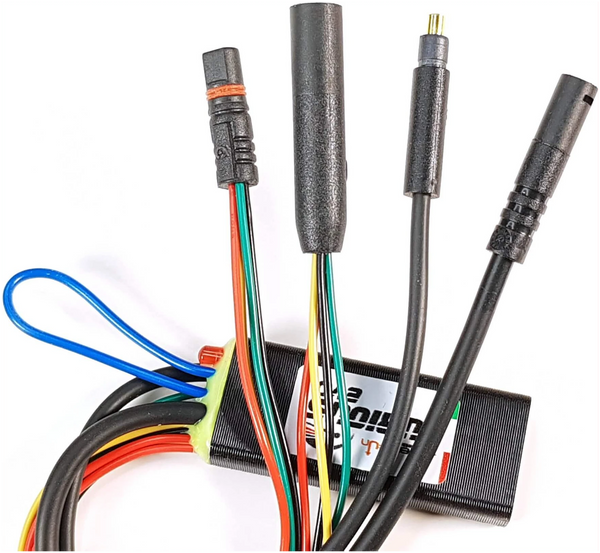

SpeedFun Furious Evo is supplied ready to use, plug and go, can be activated and deactivated at will and maintains the setting even after the ebike is turned off. It can be installed easily thanks to the compatible connectors.
The kit includes all the elements necessary for installation, thus guaranteeing extreme ease of assembly.
All these elements have been specifically designed and created by us to guarantee correct placement of the parts during installation phases and avoid malfunctions over time or inconveniences during your riding.
Since these parts are made internally at our company. company have been specifically designed to best fit the Bosch Performance Line SX Smart System engine.
INSTALLATION MANUAL
